704KVA Cast Resin Dry Type Power Transformer 6KV To 0.5KV Distribution Cast Coil Transformer
This 704 kVA three-phase cast resin transformer efficiently converts 6000V primary voltage to 530V secondary, Equipped with off-circuit tapping (±2×2.5% adjustment) , while AN/AF cooling (natural/forced air) supports continuous operation with a 100K temperature rise. The cast coil transformer Compliant with IEC60076 international standards, is a compact structure, low-noise, low-loss, moisture resistance, flame retardant, cast resin dry-type transformer.

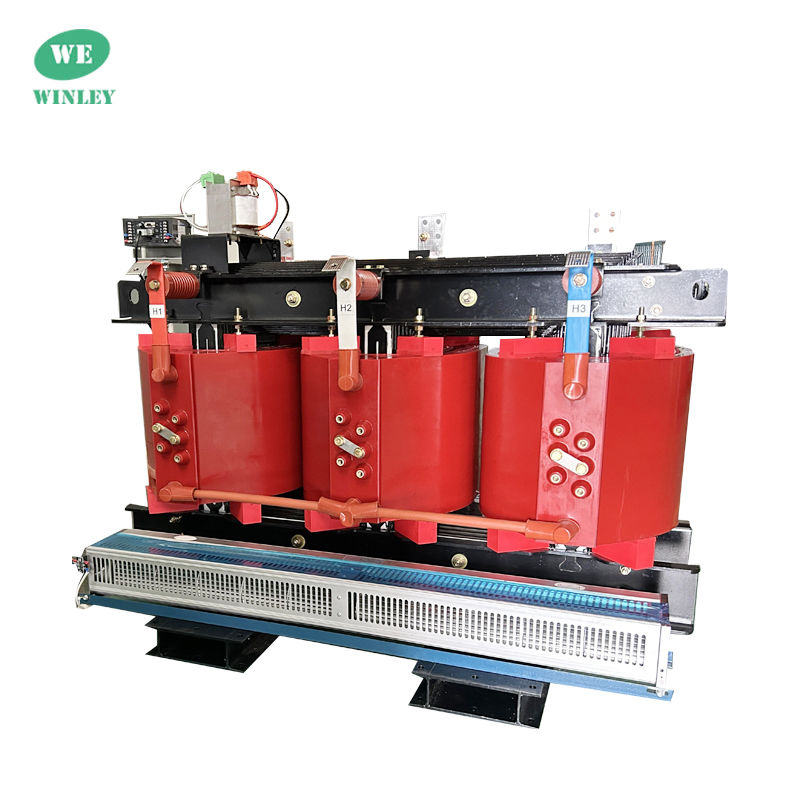

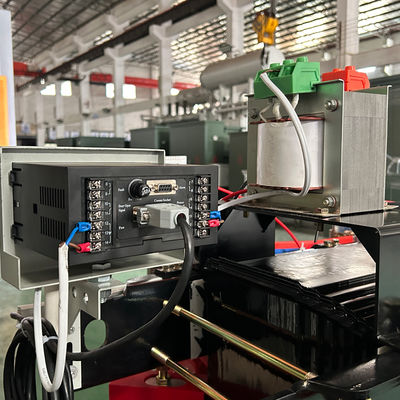

Product Photos

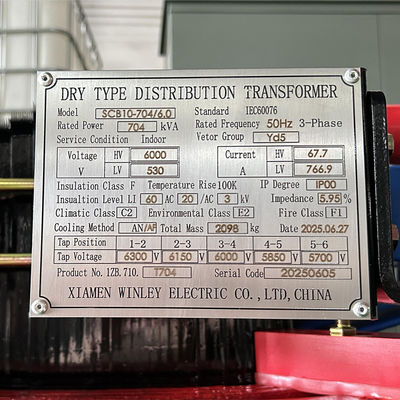

Main data
No. | Particulars | Unit | Specification | |
1 | Type | ~ | Cast resin, Dry type | |
2 | Rated capacity | kVA | 704 | |
3 | No. of Phase | ~ | 3 | |
4 | Primary voltage | V | 6000 | |
5 | Secondary voltage | V | 530 | |
6 | Tapping type | ~ | off-circuit tapping | |
7 | Tapping type | % | ±2*2.5% | |
8 | Cooling method | ~ | AN/AF | |
9 | Rated frequency | Hz | 50 | |
10 | Vector group | ~ | Yd5 | |
11 | Insulation class | ~ | F | |
13 | Temperature rise | K | 100 | |
14 | Off-load loss | W | 1500 | |
15 | On-load loss (120℃) | W | 5940 | |
16 | Impedance | % | 6 | |
17 | Winding material | ~ | Cu | |
18 | Core material | ~ | silicon steel | |
19 | Enclosure | ~ | IP00 | |
20 | Dimension | mm | 1400*1100*1250 | |
21 | weight | kg | 1950 | |
22 | Service condition | ~ | indoor | |
23 | Sea level | M | ≤1000 |
Technical drawings
Dry transformer features
1)Moisture-proof and corrosion-resistant ability , and it can run normally at 100%humidity,especially for work in extreme environmental conditions.
2)Lost loss, small local discharge, small noise, and strong heat dissipation capacity, can run 150%of the rated load operation.
3)High the whole mechanical strength of the cast coil withstand sudden short -circuit capability.
4)Safe, fire prevention, no pollution, can be installed directly in the load center.
5)Simple maintenance and installation, low comprehensive operating costs.
Specification
Product Specifications | ||||||||
Rated capacity (KVA) |
High Voltage (KV) |
Low Voltage (KV) |
Connection Symbol | No-Load Loss (W) |
On-Load Loss (W) |
No Load Current (%) |
Dimension L*W*H (mm) |
Weight (Kg) |
100 | 6KV 6.3KV 10KV 10.5KV 11KV |
0.4KV | Dyn11 Yyn0 |
540 | 1990 | 2.4 | 1600*1300*2200 | 520 |
315 | 970 | 4080 | 1.8 | 1800*1350*2200 | 1085 | |||
500 | 1350 | 5790 | 1.8 | 2000*1400*2200 | 1520 | |||
630 | 1530 | 6840 | 1.6 | 2000*1400*2200 | 1820 | |||
1000 | 2070 | 9780 | 1.4 | 2450*1450*2200 | 2550 | |||
1250 | 2380 | 11500 | 1.4 | 2300*1500*2200 | 2900 | |||
1600 | 2790 | 13800 | 1.4 | 2400*1550*2200 | 3490 | |||
2000 | 3240 | 16300 | 1.2 | 2600*1600*2200 | 4220 | |||
2500 | 3870 | 19300 | 1.2 | 2600*1600*2200 | 4955 |
